Ladders are a provisional structure that is used to support workers, who are making modifications, ideal for maintenance, cleaning & installation work or where short term access is required with safety. Aluminium ladders are very easy for a single person to transport, set up and take down.
Ladder Beams provide an access opening within scaffolding set ups to allow for material handling on site.

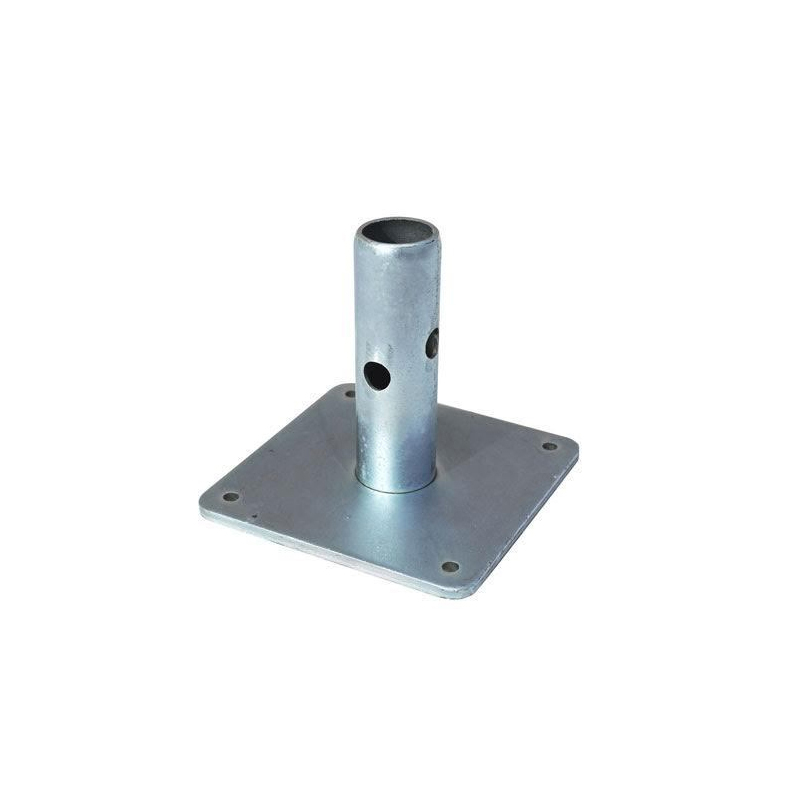

Used in conjunction with the universal jack. It is essential in offering a solid foundation to the components of scaffolding. This accessory is designed to offer a platform onto which the standards are rooted to ensure that the load of the structure is transferred and evenly distributed towards the base, thereby enhancing its stability.

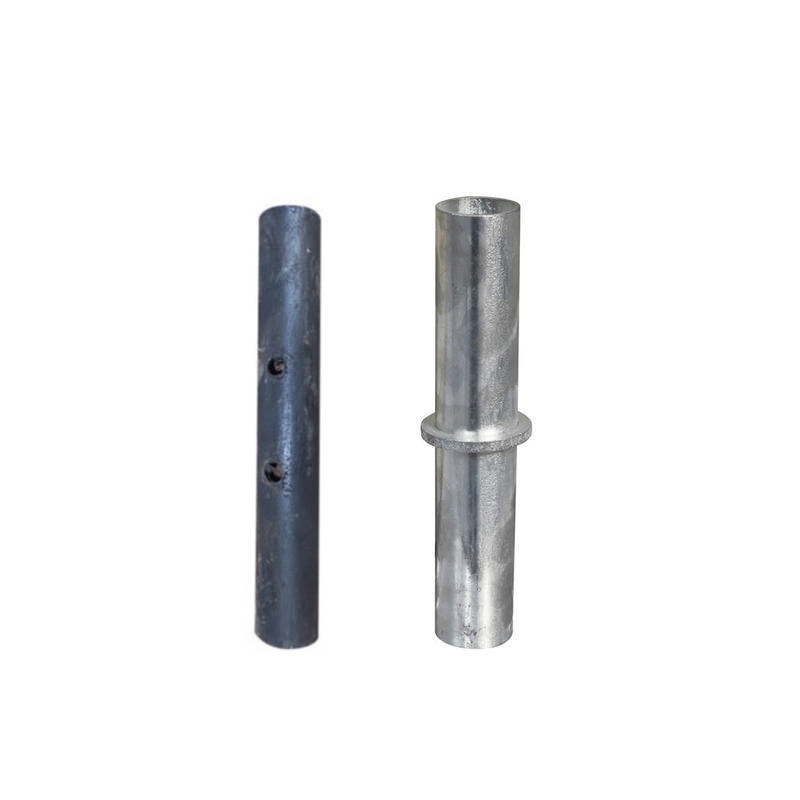

The spigot pin is used in cup lock system. It is made out of 250/300 long round pipe of 38 MM OD. Spigot is used for ambien 10 mg cup lock standard vertical.Washer is welded at the center of spigot.
It is used in conjunction with adaptors and is capable of bearing the full loading capability of cuplock when braced fully.
Size: 3m – 4m
The U JACK / Adjustable stirrup head is used at the top of the cup lock standard (Vertical) to provide an additional maximum adjustment of length up to 300 – 600 mm. Designed to be used in conjunction with an adjustable system. Holds H20 or aluminum beam securely in place
The adjustable jack provides a method of adjustment which can be used at either the top or bottom of a scaffold support structure. It is used in conjunction with Forkheads and adaptors and can accept the full loading capability of Cuplock Sysytem when fully braced.
Intermediate transoms are used for extra board support when a lift is to be boarded over as a working platform. The intermediate transoms are usually laid across ledgers in the centre of each bay, fixed with putlog couplers.
Cuplock scaffolding system is a proven heavy duty support system which is lightweight and easy to assemble. The outer diameter of the pipe is 48.3 mm and the thickness of the pipe varies from 3 mm to 4 mm as per customer requests.
Different sizes: 0.6m & 0.9m & 1.0m & 1.20m & 1.30m & 1.60m & 1.80m & 2.50m are used to support for scaffolding board by spanning between the inner and outer ledgers.
| Size (mm) | Length (m) | Finishing |
| 48.3 | 0.6 | Hot – dipped Galvanized / Painted |
| 48.3 | 0.9 | Hot – dipped Galvanized / Painted |
| 48.3 | 1 | Hot – dipped Galvanized / Painted |
| 48.3 | 1.2 | Hot – dipped Galvanized / Painted |
| 48.3 | 1.3 | Hot – dipped Galvanized / Painted |
| 48.3 | 1.8 | Hot – dipped Galvanized / Painted |
| 48.3 | 2.5 | Hot – dipped Galvanized / Painted |
Longitudinal horizontal component, Ledgers are used to connect the vertical component ‘Standard’ to spread the load bearing down on the system. Connections are possible at 0.5m vertical intervals which vary depending on the bearing load.
Cuplock scaffolding system is a proven heavy duty support system which is lightweight and easy to assemble, used as the main horizontal connection between Standards.
| Size (mm) | Length (m) | Finishing |
| 48.3 | 0.6 | Hot – dipped Galvanized / Painted |
| 48.3 | 0.9 | Hot – dipped Galvanized / Painted |
| 48.3 | 1 | Hot – dipped Galvanized / Painted |
| 48.3 | 1.2 | Hot – dipped Galvanized / Painted |
| 48.3 | 1.3 | Hot – dipped Galvanized / Painted |
| 48.3 | 1.8 | Hot – dipped Galvanized / Painted |
| 48.3 | 2.5 | Hot – dipped Galvanized / Painted |
The vertical component, Standard, are available in 9 standard sizes with “joint cups” every 0.5m vertical interval to connect the horizontral element, Ledger. The top cups are steel casting to allow the rigors of daily use. The bottom cups are high-grade pressed steel.
We offer these either in the color of your choice or Galvanized.
| Outer Diameter | Length (m) | Finishing |
| 48.3 | 0.5 | Hot – dipped Galvanized / Painted |
| 48.3 | 1 | Hot – dipped Galvanized / Painted |
| 48.3 | 1.5 | Hot – dipped Galvanized / Painted |
| 48.3 | 2 | Hot – dipped Galvanized / Painted |
| 48.3 | 2.5 | Hot – dipped Galvanized / Painted |
| 48.3 | 3 | Hot – dipped Galvanized / Painted |
Top Cup
Bottom Cup
Ledger Blade With Hole

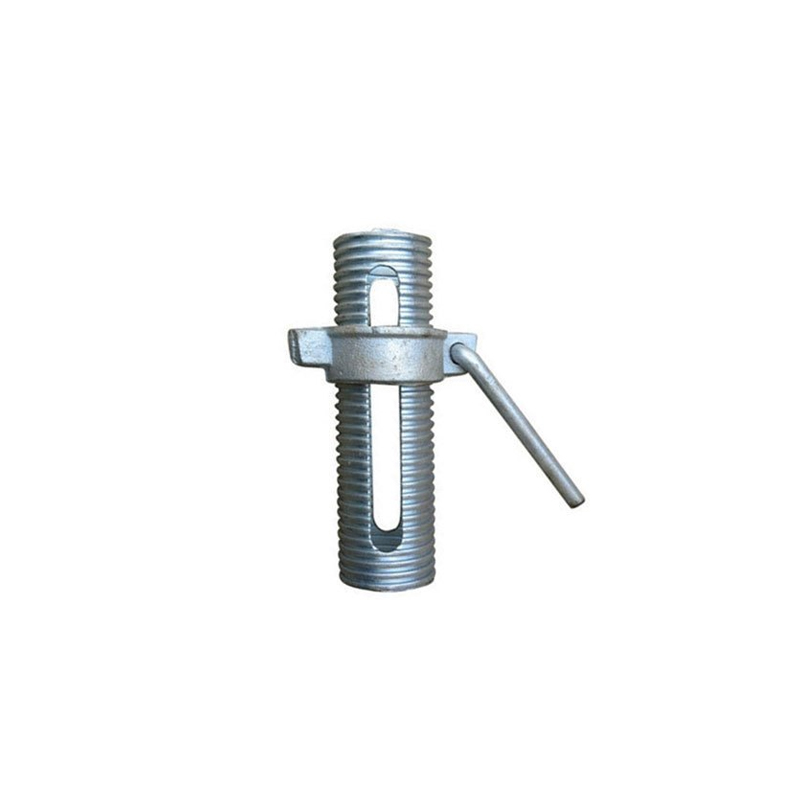

Prop Sleeve
Jack Nut
Ledger Blade
Flip Lock
Used for Cup Lock assembly
Used for Cup Lock assembly
Steel Boards are extensively used in all types of work platform and their relatively high strength to weight ratio makes them particularly suitable for safe working. Our steel plank have high slip resistance.
Wooden boards are mounted between the scaffolding, creating the walkways and paths forming safe and flexible platforms from which workers navigate and built towering constructs that make modern construction possible.
Laminated veneer lumber (LVL) is an engineered wood product that uses multiple layers of thin wood assembled with adhesives
Our goal is to provide top quality, cost effective solutions. We cater our products specifically to clientele in the Oil & Gas Industry, Contracting Companies, Construction companies, Events & Hardware companies.
